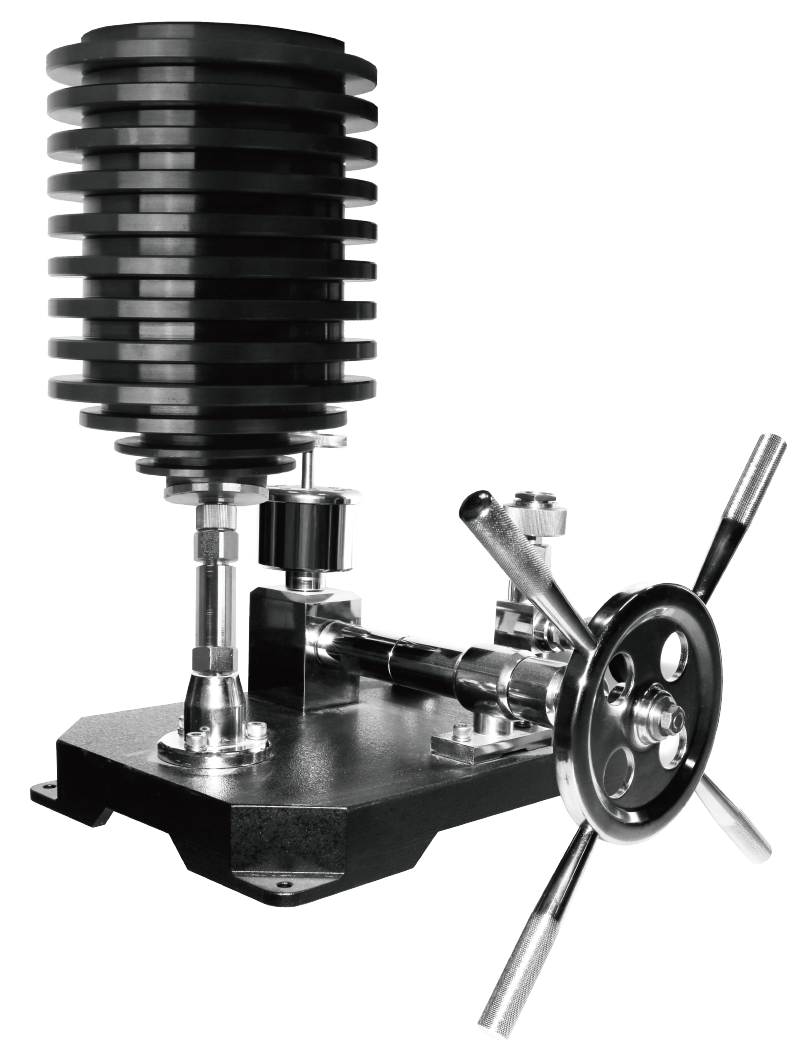

¡ß Dead weight tester ¡ß
¡Ü Model : P912-P913-P914
¡Ü Service intended :
P912, P913 & P914 series are designed to be used for gauge calibration the operating range of these series are available up to 100MPa. P912, P913 & P914 series are designed to perform the tasks such as testing and repairing pressure measurement.
¡Ü Dimensions :
- Base 400mm(W) X 178mm(H) X 280mm(D)
- Excluding hand wheel
¡Ü Color : Black
¡Ü Reservoir :
These series have a centrally isolated mounting valve and a transparent cover which can be sealed in order that tester can be moved without oil leakage.
¡Ü Screw :
The use of a large diameter ram eliminates the need for a priming pump.
¡Ü Accuracy : 0.04%
¡Ü Piston cylinder unit :
The tester is fitted with an oil reservoir this is linked to the piston cylinder unit. A stop valve is provided to prevent excessive pressure driving the piston out of the cylinder.
|
